European Standard Technolory
MAIN VESSEL
- The parts of the machine in contact with the process liquor are manufactured from acid-resistant 316L quality stainless steel.
- Locking security by pnematic piston (Activates under conditions above 80 C temperature).
- Mechanical lock working with vessel internal pressure impact.
- Observing window with stainless metal grid. (High tempered window glass resistant for higher temperature).
- LED day light lighting system inside the main body.
- Internal main body washing system.
- Main-hole entrance.
- Main body pressure release system; pneumatic on/off high pressure release valve.
- HT drains system (drain under pressure).
- Seam detection and cycle control system.
- Possibility to measure the total water consumption and consumption per kg product.
MAIN WINCH SYSTEM
- Main winch system which pervents crease marks and pilling problems by working with minimum slipage.
- Single sided bearing system.
- Mechanical seal to avoid leakage.
- Silicon Gripper which is used to pull the fabric easing & avoids crease marks.
- Belt pulley mechanie main winch drive system.
- Winch top intervention cover.
- Main winch fabric alarm system.
- Main winch drive motor.
- 0-450 m/min inverter controlled speed adjustment.
- Unloading winch with a platform which provides an easy way to reach the winches.
- 147 m/min unloading speed.
- The Nozzle can be adjusted by linear actuator.
- Eliminates crease marks and prevents uneven dyeing problems with a maximum. Penetration for the fabric 60 - 1000 gr/m2.
- Nozzle adjustment range is 4 -14 mm.
- Complete adjustment can be done %0-100 range.
- Nozzle adjustment range 0.4 - 1.4 bar g.
- Nozzle impact %0-500.
- Available nozzle diameters are 140 mm, 160 mm & 220 mm.
J-BOX
- J-BOX side walls are perforated stainless steel; bottom side with PTFE (Teflon) sheet mounted.
- Special designed J-box system to increase the performance of fabric flow through the front.
- PTFE (teflon) pipe J-Box system (optional).

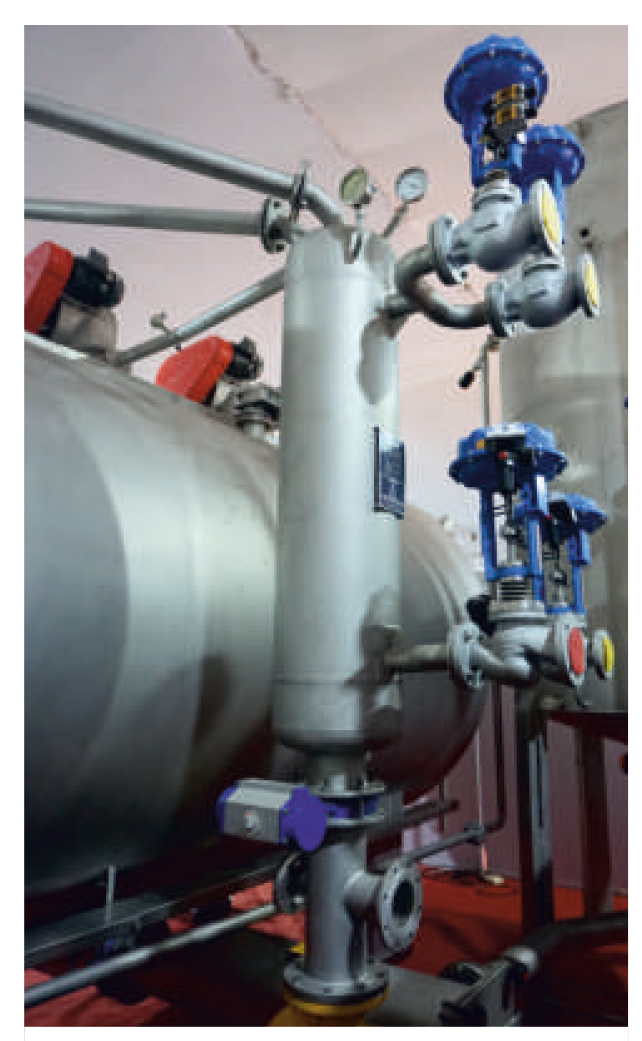

Main Heat Exchanger
- Vertically mounted shell & tube heat exchanger.
- Single pass manufactured from AISI 316L stainless steel pipe.
- Heating gradient from 30° C to 80° C; for 50° C temperature increase 0.5 - 5° C/min (steam pressure 6 bar g).
- Condensate return on/off valve.
- Cooling gradient 0.5 - 3.5° C/min
- Proportional Heating / Cooling valve.
- Cooling water return on/off valve.
- Standard compensator on the heat-exchanger's body.
- Diaphragm valves with positioner for controls the steam & cooling water properly.

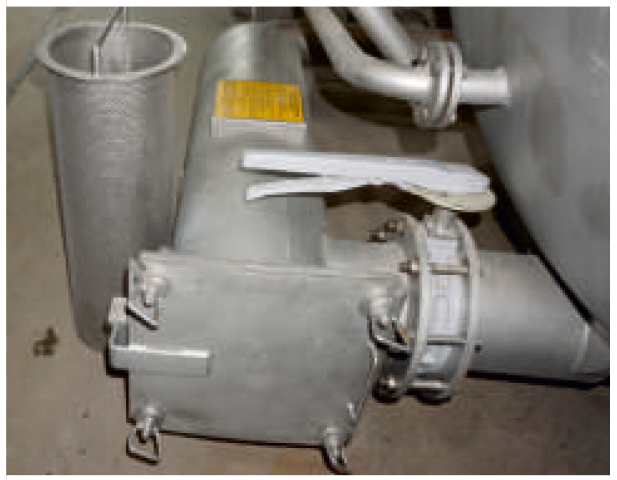

CIRCULAR HORIZONTAL TYPE FILTERING SYSTEM
- Filter is on the suction side of the main circulation pump to ensure the same efficiency throughout the process.

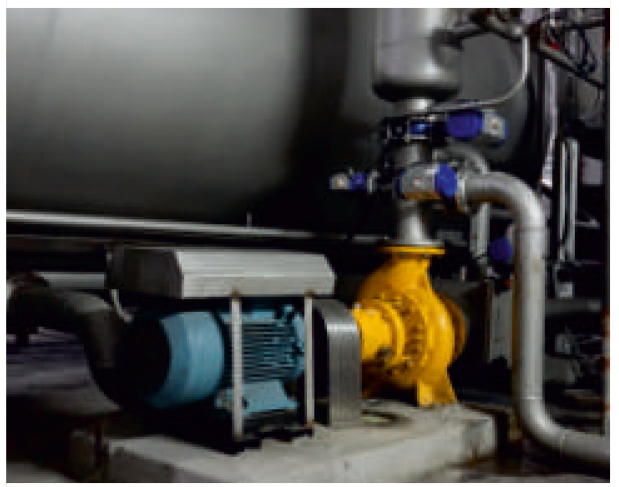

MACHINE MAIN VESSEL CIRCULATION PUMP
- High efficient horizontal centrifugal pump.
- Coupling connection.
- Mechanical Seal to avoid leakage.
- 7.5 kW/nozzle circulation pump power.
- Process bath cycle of 30-45 sec.
RESERVE TANK
- Preparing hot water, salty liquid, chemical and dye stuff injection to the machine.
- Vertical Type.
- Reserve overflow pipe.
- Pneumatic on/off drain valve.
- Additional tank to reserve tank transfer.
- Reserve tank level control system.
- Water inlet by flow meter if chosen.
- Pneumatic on/off valve for transferring from reserve tank to the machine.
- Connection point for the heated cooling water transfer from machine to reserve tank.
- Reserve tank to additional tank transfer valve.

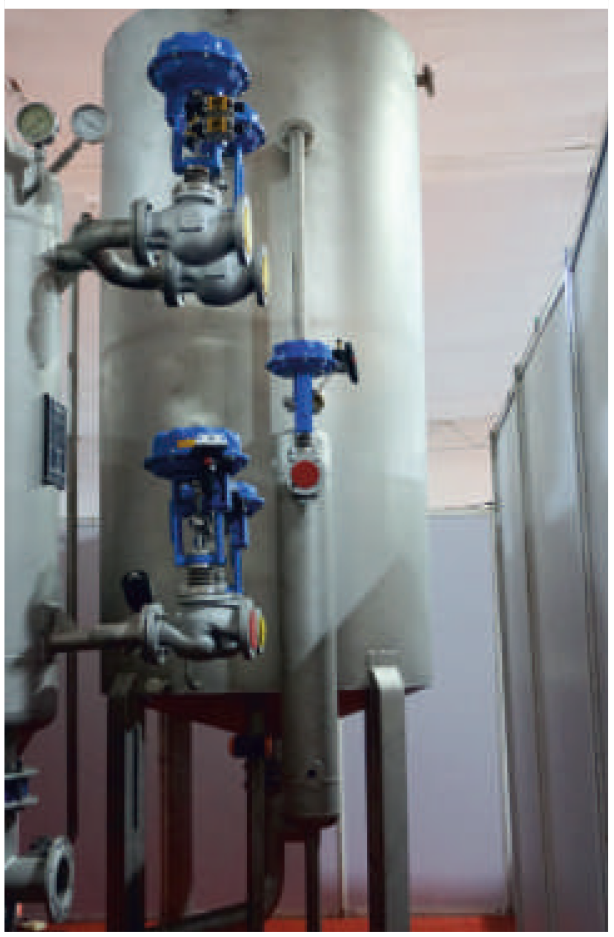

RESERVE TANK HEAT EXCHANGER
- Vertical Shell and tube heat exchanger.
- AISI 316L stainless steel materials.
- Heating gradient from 30° C to 80° C.
- 50°C temperature increasing 4° C/min. on the exchanger.
RESERVE TANK CIRCULATION PUMP
- High efficient direct couple centrifugal type pump.
- Pump circulation capacity for cycling 1 turn in 3 minutes of 1 /4 liquor ratio.
- AISI 316L Stainless steel material.
RAPID DOSING SYSTEM WITH PRE-DILUTION
- Shortens the process time by diluting the chemical with the process bath.
- Machine to additional tank transfer.
- Machine to chemical tank transfer.
DOSING PUMP (ADDITIONAL TANK)
- Direct couple AISI 316L quality stainless steel centrifuge type.
- Leak-proof system with mechanical seal.
- Dosing function: • Proportional dosing • Rapid dosing.
- Additional tank to reserve tank transfer.

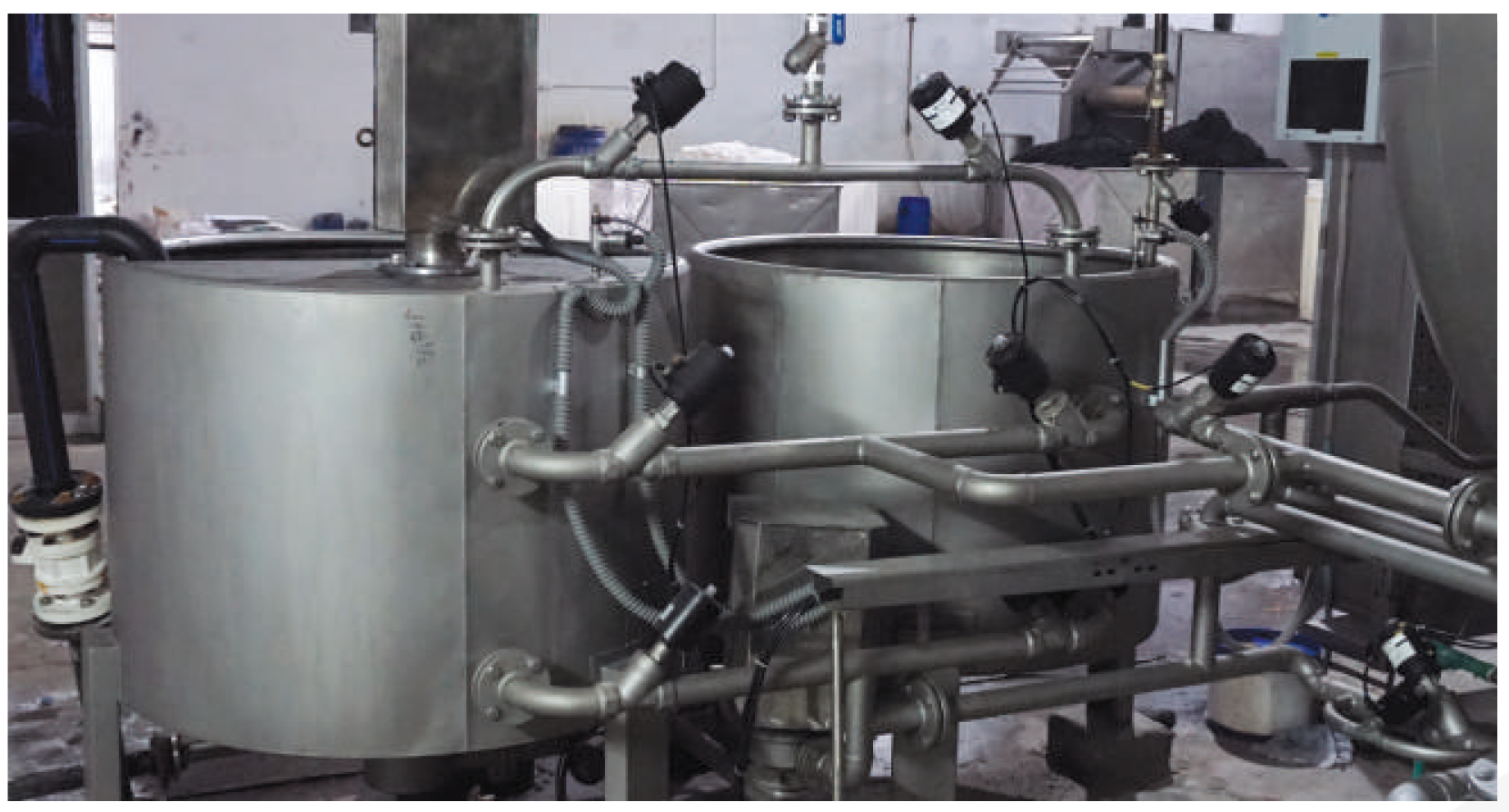

ADDITIONAL TANK
- Full body high quality AISI 316L Stainless steel.
- Indirect heating.
- Additional tank water inlet.
- Power drain.
- Mixer (Vertically mounted motor for better mixing).
- Level Control System (Level sensor which gives the information about the water level in tank).

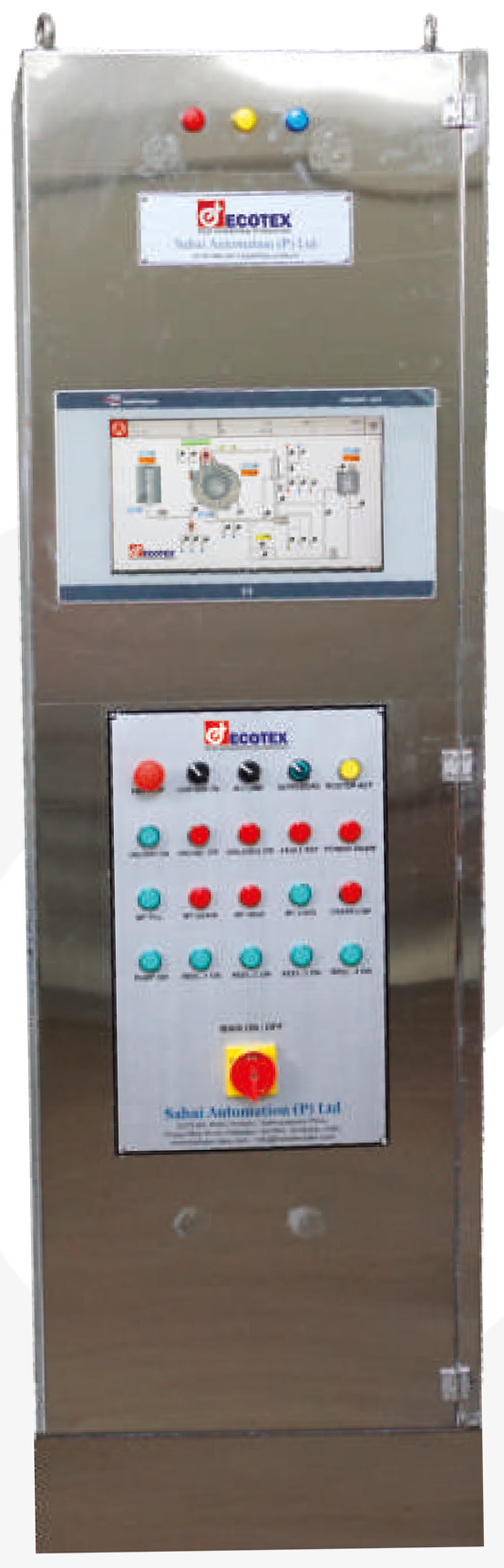

ELECTRICAL PANEL AND AUTOMATION SYSTEM
- Electrical Panel - stainless steel panel enclosure.
- Control panel.
- Machine process computer; remote access with Ethernet connection.
- All functions of machine hardware are going to be used over the software.
- Software languages are Turkish - English - Russian etc ...
- PLC Controller variants.
- SEDOMAT variants (SEDO-8015, SEDO-8010, SEDO-6007)
- SETEX variants (SECOM-777CE, SECOM-575 CE)
- ELIAR variants (ELIAR-7700, ELIAR-7000)
- ECOTEX variants (ECX-9910, ECX-6300)
| MODELS | A mm (ft) | B mm (ft) | C mm (ft) | ||
|---|---|---|---|---|---|
| ECX-lT-2.5C | 3000 (9.8) | 3600 (11.8) | 4200 (13.7) | ||
| ECX-2T-2.5C | 4100 (13.4) | 3600 (11.8) | 4300 (14.1) | ||
| ECX-3T-2.5C | 5100 (16.7) | 3600 (11.8) | 4300 (15.7) | ||
| ECX-4T-2.5C | 6200 (20.3) | 3600 (11.8) | 5000 (16.4) | ||
| ECX-5T-2.5C | 7100 (23.2) | 3600 (11.8) | 5200 (17.0) | ||
| ECX-6T-2.5C | 8000 (26.2) | 3600 (11.8) | 5500 (18.0) |
| MODELS | A mm (ft) | B mm (ft) | C mm (ft) | ||
|---|---|---|---|---|---|
| ECX-lT-3.0C | 3300 (10.8) | 3600 (11.8) | 4500 (14.7) | ||
| ECX-2T-3.0C | 4400 (14.4) | 3600 (11.8) | 4700 (15.4) | ||
| ECX-3T-3.0C | 5500 (18.0) | 3600 (11.8) | 5000 (16.4) | ||
| ECX-4T-3.0C | 6600 (21.6) | 3600 (11.8) | 5200 (17.0) | ||
| ECX-5T-3.0C | 7600 (24.9) | 3600 (11.8) | 5400 (17.7) | ||
| ECX-6T-3.0C | 8500 (27.8) | 3600 (11.8) | 5800 (19.0) |
